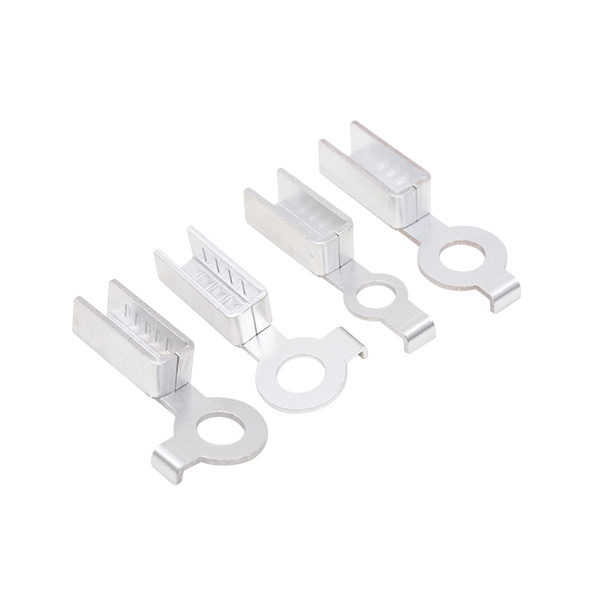

Pure Aluminum Single Grain Terminals represent a specialized class of electrical connectors manufactured from ultra-high purity aluminum with controlled crystalline structure. These terminals exhibit exceptional electrical and mechanical properties due to their unique metallurgical composition and single grain microstructure.
1. Ultra-High Purity Aluminum Composition: These terminals typically consist of 99.99% (4N) to 99.999% (5N) pure aluminum, minimizing impurity-related electron scattering and ensuring optimal conductivity.
2. Single Grain Structure: The controlled crystallization process results in terminals with single crystal orientation throughout the entire component, eliminating grain boundaries that contribute to resistance and mechanical weakness.
3. Exceptional Electrical Conductivity: Demonstrating conductivity values of 62-64% IACS (International Annealed Copper Standard), significantly higher than standard aluminum alloys (typically 55-60% IACS).
4. Low Temperature Coefficient: Exhibits a temperature coefficient of resistance of 0.0039 Ω/Ω/°C, providing stable performance across temperature ranges from -200°C to +300°C.
5. Mechanical Properties: Shows a unique combination of tensile strength (120-150 MPa) and elongation (15-25%), outperforming conventional polycrystalline aluminum in fatigue resistance.
6. Surface Characteristics: The single grain structure allows for atomic-level smooth surfaces with surface roughness (Ra) values below 0.1 μm after precision machining.
1. High-Frequency Electronics: The absence of grain boundaries makes these terminals ideal for RF connectors in 5G infrastructure, where signal integrity at frequencies above 28 GHz is critical.
2. Cryogenic Systems: Used in superconducting magnet systems and quantum computing applications due to their stable performance at temperatures approaching 4K (-269°C).
3. Aerospace Electrical Systems: Employed in satellite power distribution systems where their combination of light weight (2.7 g/cm³ density) and reliability is essential.
4. High-Power Semiconductor Packaging: Serving as IGBT module terminals in electric vehicle power electronics, handling currents up to 600A continuously with minimal joule heating.
5. Scientific Instrumentation: Critical components in particle accelerator beamline connections and ultra-high vacuum (UHV) systems due to their outgassing rates below 10^-12 Torr·L/s·cm².
6. Medical Imaging Equipment: Used in MRI system connections where non-magnetic properties and high conductivity are required.
1. Cleaning Protocol: Use only ultra-pure isopropyl alcohol (99.99%) with lint-free wipes (class 100 cleanroom grade) for surface cleaning. Never use abrasive materials that could disrupt the single crystal surface.
2. Contact Preservation: Apply specialized aluminum-compatible contact grease (viscosity 150-200 cSt at 40°C) when mating surfaces to prevent cold welding in vacuum applications.
3. Torque Specifications: Follow manufacturer's torque values precisely (typically 0.5-2.5 N·m depending on terminal size) to avoid creating dislocations in the crystal structure.
4. Storage Conditions: Store in nitrogen-purged containers (dew point below -60°C) to prevent surface oxidation. Relative humidity should be maintained below 10% RH.
5. Inspection Intervals: Perform visual inspection every 500-1000 operational hours using 20-50x magnification to check for micro-cracks or surface defects.
6. Reconditioning Procedures: For oxidized terminals, use only electropolishing with perchloric acid/ethanol solutions (4:1 ratio at -30°C) followed by immediate argon plasma cleaning.
When working with Pure Aluminum Single Grain Terminals:
Always use cleanroom gloves (class ISO 4 or better) to prevent contamination
Never allow contact with other metals to prevent galvanic corrosion
Use beryllium-copper or titanium tools for installation to avoid aluminum transfer
Maintain ESD protection during handling (surface resistivity 10^6-10^9 Ω/sq)
Follow thermal cycling protocols when transitioning between extreme temperatures (max rate 5°C/minute)
